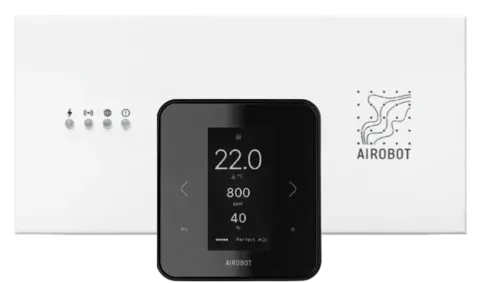

Room sensor and controller 24V

Airobot 24V Heating Control handles both heating and cooling with ease.

It works with water-based floor heating and cooling, and can also control electric floor heating when paired with a relay.
The system can even manage both water and electric heating at the same time, switching between them automatically depending on the season.
For homes with fan-coil cooling, it can also control the fan using an optional expansion module.
All of this happens seamlessly in the background, keeping your indoor climate just right year-round.

Water underfloor heating control
Water underfloor cooling control
Control of electric floor heating with separate relay A-HC-R2416 (up to 16A)
Combined control of electric and water floor heating: simultaneous use with both water and electric floor heating
Management of water underfloor heating during the heating period; when switching to cooling in summer, water underfloor heating is automatically turned off and electric underfloor heating is activated
Fan-coil control with separate expansion module A-HC-EXTC

Air temperature and humidity measurement
CO2 carbon dioxide measurement (only for room sensors marked -AQ)
Control via air temperature or floor sensor
Home and away mode of operation: different temperature setting points can be set for each mode
Network connection: Wi-Fi and LAN cable
Mobile application control with iOS and Android applications (network connection required)
Circulation pump control
Boiler control
House automation compatibility: Modbus TCP (coming over the air in 2025 with an upgrade)
Transmission of carbon dioxide CO2 readings to Airobot ventilation unit for air quality control of air flow
Automatic or manual change of heating and cooling mode
Prohibition of floor cooling by room
Automatic shutdown of floor cooling when the humidity in the room rises above the permissible limit (to prevent dew point)
Deactivation of floor cooling in away operation mode by room
Possibility to calibrate the temperature reading of the room sensor

Supply voltage: From the room controller 24 V
Connectivity between the room sensor and the room controller: 4-core low-current cable 0.22 mm2 – 0.75 mm2, max. length 100 m. It is recommended to use a data cable.
IP protection class: IP20
Ambient temperature and humidity: +5 °C to 40 °C, max. 80% relative humidity (non-condensing)
Floor sensor: 10 kΩ NTC, max 0.75 mm2
Installation: Wall adapter included, EU wall case D68 mm or smooth wall, 60 mm gap between mounting screws
Temperature sensor: Digital, accuracy ±0.2 °C
Air humidity sensor: Digital, accuracy ±2%
Carbon dioxide (CO2) sensor: only on a model marked -AQ Photoacoustic, accuracy ±50 ppm + 5% reading
Compliance: EN 60730-1, EN 60730-2-9, EN 61000-6-2, EN 61000-6-4
Product dimensions: 82 x 89 x 11 mm
Product weight: 60 g
Package dimensions: 14 x 12.5 x 5 cm
Package weight: 125 g

Maximum number of room sensors: 8
Maximum heating zones: 8
Connectivity to room sensors: 4-core low-current cable, from 0.22 mm2 to 0.75 mm2, max. length 100 m. It is recommended to use a data cable.
Maximum number of actuators: 12 Actuators, output 24 V DC, NC normally closed, max. switching current 0,2 A
Power supply: 230 VAC 50 Hz (3 A) Power Max. 45 W
Power connection: 1 meter cord with EU connector
Ambient temperature and humidity: From 0 °C to 45 °C, max. 80% relative humidity (non-condensing)
Output relay 1: pump, maximum 100 W. Activated with 3 minute delay when at least 1 zone requests heating.
Output relay 2: boiler (RELAY) Potential-free NC/NO, maximum 2 A resistive or 1 A inductive. Activated with 3 minute delay when at least 1 zone requests heating.
Network connection: Wi-Fi 2.4 GHz or LAN with internet wire
Compatibility: iOS and Android mobile app
Compliance with standards: EN 60730-1, EN 60730-2-9, EN 61000-6-2, EN 61000-6-4
Dimensions: 244 x 55 x 120 mm
Weight: 1.25 kg
Package dimensions: 30 x 30 x 5.5 cm
Package weight: 1.6 kg
