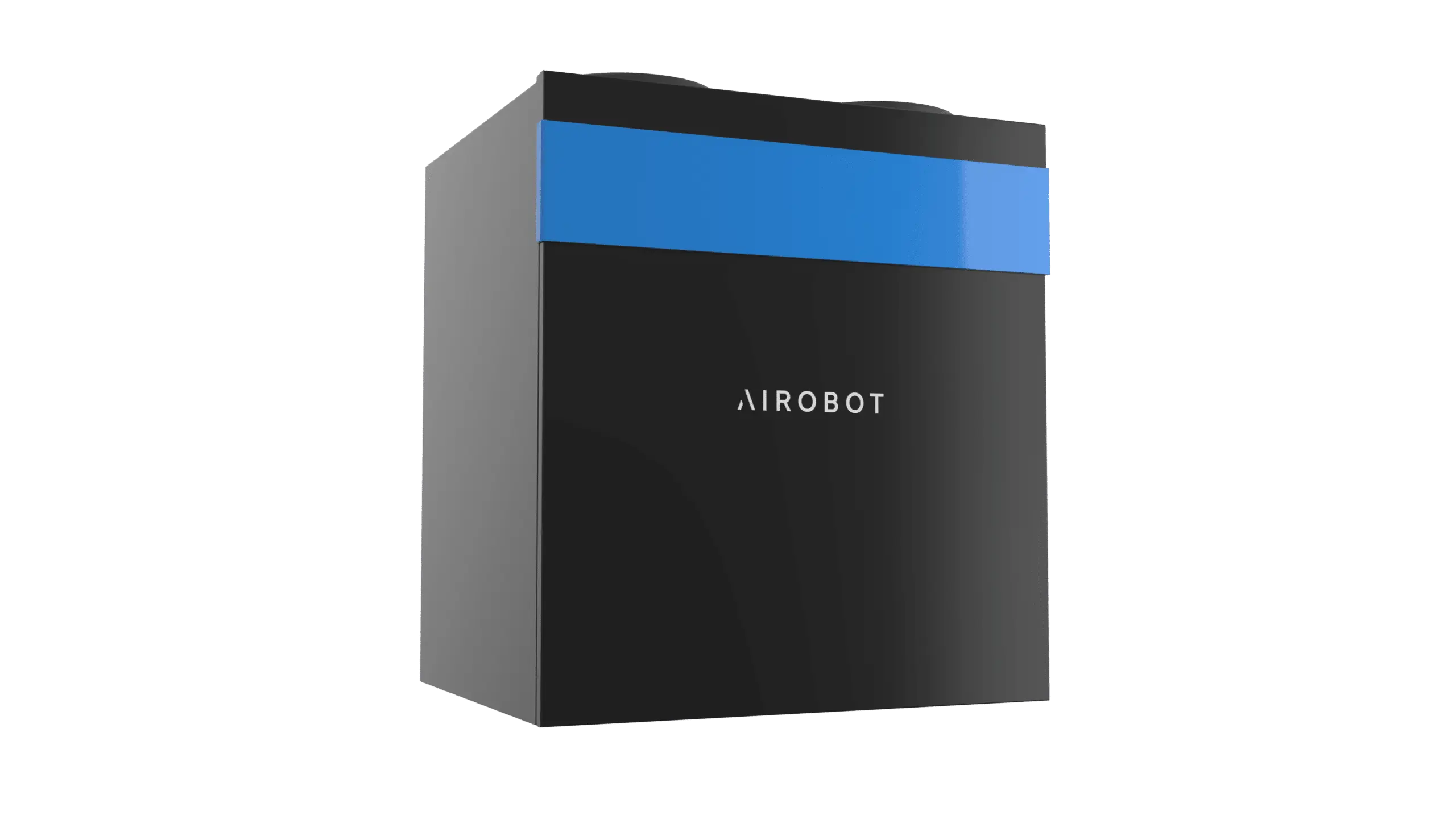

Airobot V4

• Filters: Exhaust: ePM10 55% (M5), outdoor air: ePM1 55% (F7)
• Material: Expanded Polypropylene (EPP)
• Housing: Sheet metal, powder-coated white or black
• Ducting: 200 mm
• Condensate drain: HRV: 32 mm, water trap included. ERV: not equipped and not required under normal conditions
• Power supply: 1~230 VAC, EU plug, maximum power 2.1 kW (10A circuit breaker)
• Fan power 2 x 83 W
• Pre-heater: Integrated, 0-100% controllable PTC heater, nominal power of pre-heater (varies depending on external temperature) kW: 1.5 kW
• Ventilated air -20 °C to +50 °C, maximum extract relative humidity 80%
• Ambient temperature +5 °C to +40 °C (HRV), -20 °C to +40 °C (ERV)
• Dimensions: 590 x 699 x 783 mm
• Weight: 50 kg
• Compliance: EN 60335-1, EN 61000-6-3, EN 61000-6-1, Ecodesign Directive 2009/125/EC
• Warranty 2-year standard, 2 additional years under special conditions

• High-efficiency EC Fans

• Constant flow technology measures fan pressure to maintain balanced airflow in all conditions automatically. (Optional)

• Speed continuously adjustable 0-100% in automatic mode, incrementally adjustable 0-10 in manual mode

• Integrated sensors: CO2, VOC, 4 air temperature and humidity sensors
• Occupancy sensing and energy-saving mode – Airobot senses room occupancy by combining data from several sensors. It activates energy-saving mode automatically when necessary.
• Integrated frost protection (preheater), nominal power 1.5 kW, PTC 0-100% control
• Humidity detection – whenever the unit senses a sudden increase in humidity, it switches to a higher speed
• Automatic summer bypass
• Autonomous control – smart motor control ensures pleasant indoor air and maximum energy efficiency
• Overpressure mode – temporarily switches the unit to pressurize indoor air; can be automated with a pressure sensor to react to a stove hood, for example
• Boost mode – temporarily switches the unit to maximum speed to quickly ventilate the space

• iOS and Android mobile applications – access all features and settings, no wall-mounted remote needed (requires network connection)

• Wall-mounted remote VE1: optional

• Home automation: Modbus RTU and Modbus TCP (LAN only)

• Connectivity: LAN and Wi-Fi (2.4 GHz)

The V4 model is supplied with Type  R duct connections by default. The connections can be switched to Type  L on-site if needed.

SUP – Supply air to the room

ETA – Extract air from the room

ODA – Outside air

EHA – Exhaust air to outside
